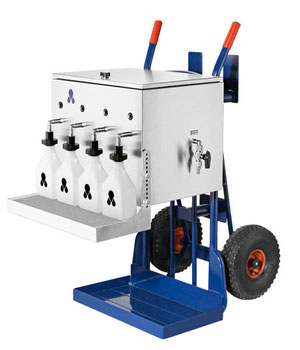

Bunker Sampler FS7014

AUTOMATIC BUNKER SAMPLER MARPOL ANNEX VI



TYPE:  MOT 7014



THIS SAMPLER CAN SAMPLE INTO 1-4 TIMES 1 LITER BOTTLES AT A TIME AND HAS AN ADJUSTABLE BOTTLE TRAY. IT CAN BE CONNECTED TO THE MANIFOLD/BUNKERLINE WITH HOSES. THIS SAMPLER CAN SAMPLE UNDER ALL CONDITIONS, EVEN DURING COLD WEATHER CONDITIONS AND WITH A VACUUM ON THE BUNKERLINE.

THE TROLLEY IS INCLUDED. THE PROBES ARE SOLD SEPARATELY AND ARE DESIGNED FOR EACH APPLICATION.



THE SAMPLER IS PNEUMATIC DRIVEN ONLY.

SPECIFICATION:

WORKING AIR PRESSURE: 6-8 BAR.

TIMER (BUNKER TIME): NORMAL 1 TO 16 HOURS

MATERIALS: STAINLESS STEEL AISI 316 CASE AND FITTINGS

AUTOMATIC STOP AFTER SAMPLING

FLUSHINGPROCEDURE

SIZE: 60x60x60 CM

WEIGHT: 35 KGS

FULFILS MARPOL ANNEX VI
