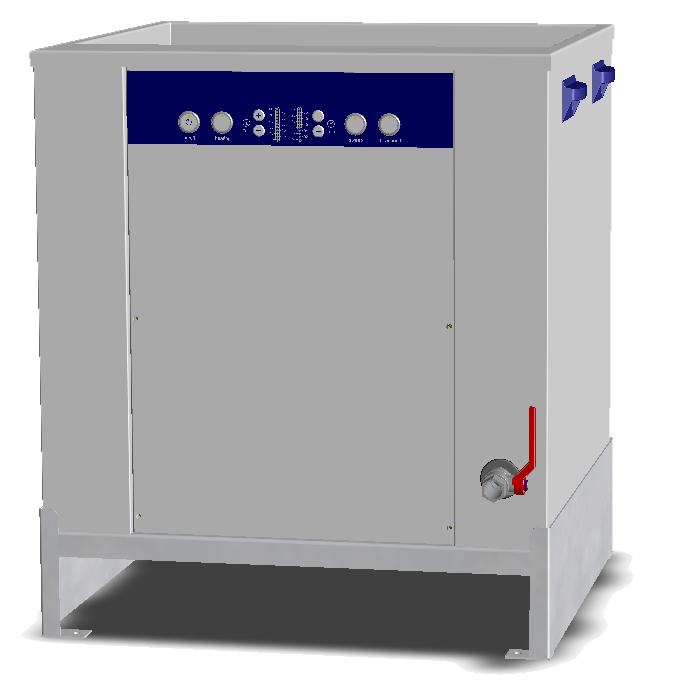

MARCO POOL 6550 HL

Technical description ultrasonic cleaner MARCO POOL



Ultrasonic cleaner type model 6550 HL



Internal dimensions:                                             600 x 500 x 500 mm (L x W x H)



External dimensions:                                            650 x 620 x 716 mm (L x W x H)



Content:                                                                90 litres (max. 150 litre)



Drain:                                                                    3/4"



Material:                                                                Stainless steel



Frequency:                                                           40 kHz



Ultrasonic elements:                                             16 pieces transducer mounted directly

                                                                              to tank bottom



HF-continuous peak per period:                           1600 W



Timer:                                                                   0 – 120 min. – Continuous operation



Heating:                                                                 2  kW, adjustable 30 - 85ºC



Main supply:                                                         230 V – 50/60 Hz + N + PE



Connected power:                                                2.8 kW
