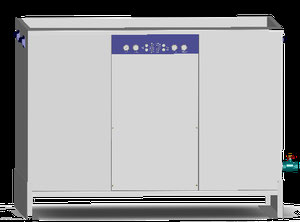

MARCO POOL 8550 HL

Technical description ultrasonic cleaner MARCO POOL



Ultrasonic cleaner type model 8550 HL



          Internal dimensions:                                             820 x 500 x 500 mm (L x W x H)



          External dimensions:                                            940 x 610 x 702 mm (L x W x H)



Content:                                                                200 litres (max)



Drain:                                                                    3/4"



Material:                                                                Stainless steel



Frequency:                                                           40 kHz



Ultrasonic elements:                                            16 pieces transducer mounted directly

                                                                              to tank bottom



HF-continuous peak per period:                           2000 W



Timer:                                                                   0 – 60 min. – Continuous operation



Heating:                                                                2  kW, adjustable 30 - 80ºC



Main supply:                                                         230 V – 50/60 Hz + N + PE



Connected power:                                                3.5 kW
